Diesel Generators

Our diesel generators are compatible of meeting global emission and electrical standards including non- emission, Stage IIIA, European Stage V and Tier 4 Final. With a Power range from 6KVA to 3250KVA, these products can effectively provide power and meet the needs of our customers and comply with CE and UL electrical standards.

EC
EC
EC
EC
EC
Diesel Generators

EC

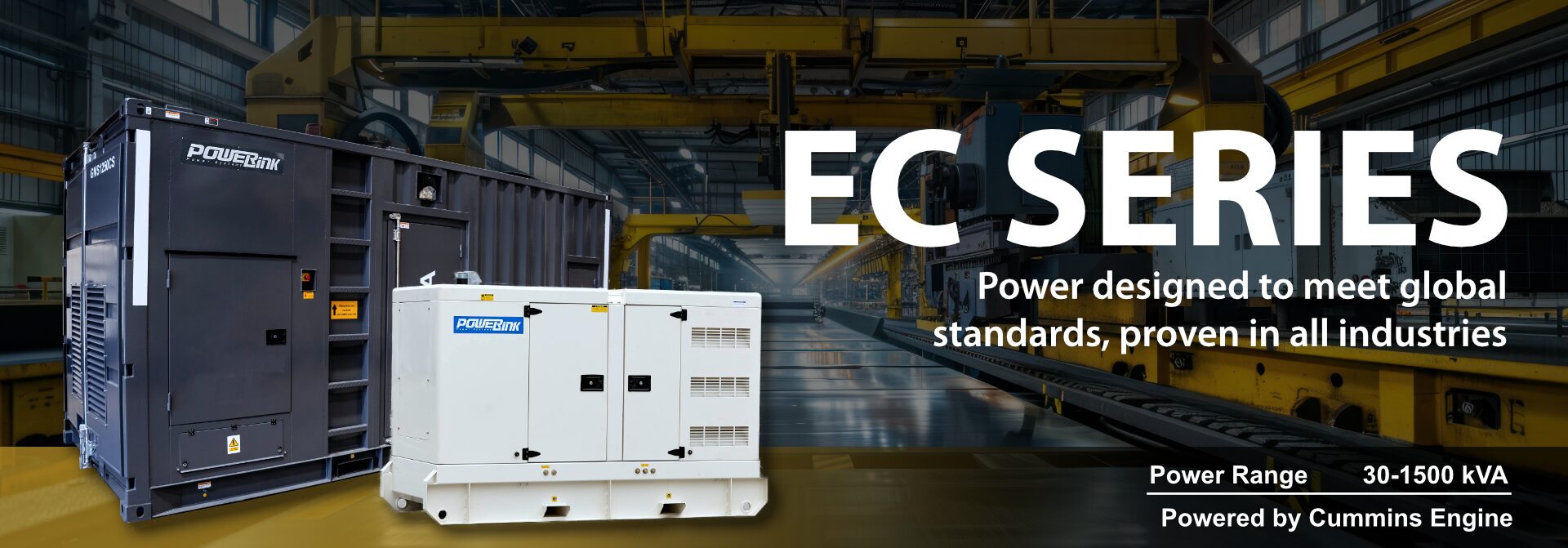

EC series diesel generator sets, with a power range from 30KVA – 1500KVA, are powered by a high quality Cummins engine and Stamford alternator. These gensets are reliable and durable, which means that they can be used as prime continuous power supply and also provide stable standby power. Powerlink provides suitable products for investors to meet different application needs according to different installation location and application requirements of each project.

EC
EC
EC
EC
EC
EC

Parts always at hand
to meet your needs

Powerlink has many parts warehouses around the world,
with sufficient stock levels enabling customers to receive the
original parts they require at any time.

Know More

Product Specification

Need more information? download our product specification charts for more specific information.

Get Sales Support

  • 50HZ
  • 60HZ
Product ID Produt Family Model Engine Brand Engine Model PRP KVA PRP KW ESP KVA ESP KW Structure Specification
1000032563 EC GMS30C Cummins 4B3.9-G1 30 24 33 26 Open
1000029574 EC GMS42C Cummins 4BT3.9-G1 43 34 47 37 Open
1000029575 EC GMS60C Cummins 4BTA3.9-G2 60 48 66* 53* Open
1000029576 EC GMS80C Cummins 4BTA3.9-G11 80 64 88 70 Open
1000035732 EC GMS100C Cummins 4BTAA3.9-G3 100 80 110 88 Open
1000029577 EC GMS100C Cummins 6BT5.9-G2 100 80 110 88 Open
1000029578 EC GMS135C Cummins 6BTAA5.9-G2 135 108 149 119 Open
1000029579 EC GMS150C Cummins 6BTAA5.9-G12 150 120 165 132 Open
1000035735 EC GMS180C Cummins 6CTA8.3-G1 180 145 199 160 Open
1000029580 EC GMS180C Cummins 6CTA8.3-G2 180 145 199 160 Open
1000029581 EC GMS200C Cummins 6CTAA8.3-G2 200 160 220 176 Open
1000029582 EC GMS250C Cummins 6LTAA8.9-G2 250 200 275 220 Open
1000029583 EC GMS320C Cummins 6LTAA9.5-G1 320 256 352 282 Open
1000035959 EC GMS380C Cummins QSG12-G4 388 310 425 340 Open
1000032567 EC GMS380C Cummins 6ZTAA13-G3 388 310 425 340 Open
1000029617 EC GMS450C Cummins QSZ13-G2 438 350 481 385 Open
1000029618 EC GMS500C Cummins QSZ13-G3 500 400 550 440 Open
1000029629 EC GMS650C Cummins KTA19-G8 N/A N/A 650 520 Open
1000029630 EC GMS650C Cummins QSK19-G4 650 520 715 572 Open
1000029632 EC GMS800C Cummins KTA38-G2B 800 640 880* 704* Open
1000029633 EC GMS900C Cummins KTA38-G2A 900 720 990* 792* Open
1000029634 EC GMS1000C Cummins KTA38-G5 1000 800 1100* 880* Open
1000029635 EC GMS1250C Cummins KTA38-G9 N/A N/A 1250* 1000 Open
1000029636 EC GMS1250C Cummins KTA50-G3 1250 1000 1375* 1100* Open
1000029638 EC GMS1500C Cummins KTA50-GS8 1500 1200 1650 1320 Open
1000032571 EC GMS30CS Cummins 4B3.9-G1 30 24 33 26 Canopied
1000029541 EC GMS42CS Cummins 4BT3.9-G1 43 34 47 37 Canopied
1000029542 EC GMS60CS Cummins 4BTA3.9-G2 60 48 66 53 Canopied
1000029543 EC GMS80CS Cummins 4BTA3.9-G11 80 64 88 70 Canopied
1000035738 EC GMS100CS Cummins 4BTAA3.9-G3 100 80 110 88 Canopied
1000029544 EC GMS100CS Cummins 6BT5.9-G2 100 80 110 88 Canopied
1000029545 EC GMS135CS Cummins 6BTAA5.9-G2 135 108 149 119 Canopied
1000029546 EC GMS150CS Cummins 6BTAA5.9-G12 150 120 165 132 Canopied
1000035741 EC GMS180CS Cummins 6CTA8.3-G1 180 144 198 158 Canopied
1000029547 EC GMS180CS Cummins 6CTA8.3-G2 180 144 198 158 Canopied
1000029548 EC GMS200CS Cummins 6CTAA8.3-G2 200 160 220 176 Canopied
1000029549 EC GMS250CS Cummins 6LTAA8.9-G2 250 200 275 220 Canopied
1000029550 EC GMS320CS Cummins 6LTAA9.5-G1 320 256 352 282 Canopied
1000035960 EC GMS380CS Cummins QSG12-G4 388 310 425 340 Canopied
1000032575 EC GMS380CS Cummins 6ZTAA13-G3 388 310 425 340 Canopied
1000029650 EC GMS450CS Cummins QSZ13-G2 450 360 495 396 Canopied
1000029651 EC GMS500CS Cummins QSZ13-G3 500 400 550 440 Canopied
1000029662 EC GMS650CS Cummins KTA19-G8 N/A N/A 650 520 Canopied
1000031083 EC GMS650CS Cummins QSK19-G4 650 520 715 572 Canopied
1000029665 EC GMS800CS Cummins KTA38-G2B 800 640 880 704 Containerised
1000029666 EC GMS900CS Cummins KTA38-G2A 900 720 990 792 Containerised
1000029667 EC GMS1000CS Cummins KTA38-G5 1000 800 1100 880 Containerised
1000029668 EC GMS1250CS Cummins KTA38-G9 N/A N/A 1250 1000 Containerised
1000029669 EC GMS1250CS Cummins KTA50-G3 1250 1000 1375 1100 Containerised
1000029671 EC GMS1500CS Cummins KTA50-GS8 1500 1200 1650 1320 Containerised
Product ID Produt Family Model Engine Brand Engine Model Voltage PRP KVA PRP KW ESP KVA ESP KW Structure Specification
1000029453 EC GMS30C6 Cummins 4B3.9-G12 208V 35 28 39 31 Open
1000029454 EC GMS40C6 Cummins 4BT3.9-G2 208V 41 33 45 36 Open
1000001634 EC GMS66C6 Cummins 4BTA3.9-G2 208V 73 58 80 64 Open
1000029455 EC GMS80C6 Cummins 4BTA3.9-G11 208V 90 72 99 79 Open
1000001652 EC GMS95C6 Cummins 6BT5.9-G2 208V 110 88 121 97 Open
1000001676 EC GMS125C6 Cummins 6BTAA5.9-G2 208V 140 112 154 123 Open
1000029456 EC GMS145C6 Cummins 6BTAA5.9-G12 208V 160 128 176 141 Open
1000001700 EC GMS165C6 Cummins 6CTA8.3-G2 208V 188 150 206 165 Open
1000001724 EC GMS200C6 Cummins 6CTAA8.3-G2 208V 225 180 248 198 Open
1000020988 EC GMS240C6 Cummins 6LTAA8.9-G2 208V 275 220 303 242 Open
1000029457 EC GMS280C6 Cummins 6LTAA9.5-G1 208V 320 256 352 282 Open
1000027980 EC GMS375C6 Cummins QSZ13-G2 208V 438 350 481 385 Open
1000027981 EC GMS450C6 Cummins QSZ13-G3* 208V 500 400 550 440 Open
1000027984 EC GMS400C6 Cummins QSZ13-G2 480V 438 350 481 385 Open
1000027985 EC GMS450C6 Cummins QSZ13-G3 480V 500 400 550 440 Open
1000026781 EC GMS800C6 Cummins KTA38-G2 480V 906 725 997 798 Open
1000026782 EC GMS880C6 Cummins KTA38-G2A 480V 1000 800 1100 880 Open
1000026783 EC GMS1020C6 Cummins KTA38-G4 480V 1159 900 1238 990 Open
1000021226 EC GMS1100C6 Cummins KTA38-G9 480V N/A N/A 1375 1100 Open
1000021227 EC GMS1100C6 Cummins KTA50-G3 480V 1250 1000 1375 1100 Open
1000021006 EC GMS1375C6 Cummins KTA50-G9 480V 1563 1250 1719 1375 Open
1000029428 EC GMS30C6S Cummins 4B3.9-G12 208V 35 28 39 31 Canopied
1000029429 EC GMS40C6S Cummins 4BT3.9-G2 208V 45 36 50 40 Canopied
1000009981 EC GMS66C6S Cummins 4BTA3.9-G2 208V 75 60 85 66 Canopied
1000029430 EC GMS80C6S Cummins 4BTA3.9-G11 208V 90 72 99 79 Canopied
1000009999 EC GMS95C6S Cummins 6BT5.9-G2 208V 110 88 121 97 Canopied
1000010023 EC GMS125C6S Cummins 6BTAA5.9-G2 208V 145 116 156 125 Canopied
1000029431 EC GMS145C6S Cummins 6BTAA5.9-G12 208V 160 128 176 141 Canopied
1000010047 EC GMS165C6S Cummins 6CTA8.3-G2 208V 188 150 206 165 Canopied
1000010071 EC GMS200C6S Cummins 6CTAA8.3-G2 208V 210 168 231 185 Canopied
1000021007 EC GMS240C6S Cummins 6LTAA8.9-G2 208V 260 208 286 229 Canopied
1000029432 EC GMS280C6S Cummins 6LTAA9.5-G1 208V 320 256 352 282 Canopied
1000027978 EC GMS375C6S Cummins QSZ13-G2 208V 438 350 481 385 Canopied
1000027979 EC GMS450C6S Cummins QSZ13-G3* 208V 500 400 550 440 Canopied
1000027982 EC GMS400C6S Cummins QSZ13-G2 480V 438 350 481 385 Canopied
1000027983 EC GMS450C6S Cummins QSZ13-G3 480V 500 400 550 440 Canopied
1000026778 EC GMS800C6S Cummins KTA38-G2 480V 906* 725 997 798 Containerised
1000026779 EC GMS880C6S Cummins KTA38-G2A 480V 1000 800 1100 880 Containerised
1000026780 EC GMS1020C6S Cummins KTA38-G4 480V 1159 900 1238 990 Containerised
1000021134 EC GMS1100C6S Cummins KTA38-G9 480V N/A N/A 1375 1100 Containerised
1000021225 EC GMS1100C6S Cummins KTA50-G3 480V 1250 1000 1375 1100 Containerised
1000023452 EC GMS1375C6S Cummins KTA50-G9 480V 1563 1250 1719 1375 Containerised
EC GMS30C6S Cummins 4B3.9-G12 380V 35 28 38 30 Canopied
EC GMS40C6S Cummins 4BT3.9-G2 380V 45 36 50 40 Canopied
EC GMS66C6S Cummins 4BTA3.9-G2 380V 75 60 85 66 Canopied
EC GMS80C6S Cummins 4BTA3.9-G11 380V 90 72 99 79 Canopied
EC GMS95C6S Cummins 6BT5.9-G2 380V 105 84 116 92 Canopied
EC GMS125C6S Cummins 6BTAA5.9-G2 380V 145 116 156 125 Canopied
EC GMS145C6S Cummins 6BTAA5.9-G12 380V 160 128 176 141 Canopied
EC GMS165C6S Cummins 6CTA8.3-G2 380V 190 152 209 167 Canopied
EC GMS200C6S Cummins 6CTAA8.3-G2 380V 210 168 231 185 Canopied
EC GMS240C6S Cummins 6LTAA8.9-G2 380V 260 208 286 229 Canopied
EC GMS280C6S Cummins 6LTAA9.5-G1 380V 320 256 352 282 Canopied
EC GMS375C6S Cummins QSZ13-G2 380V 438 350 481 385 Canopied
EC GMS450C6S Cummins QSZ13-G3* 380V 500 400 550 440 Canopied
EC GMS800C6S Cummins KTA38-G2 380V 906 725 997 798 Containerised
EC GMS880C6S Cummins KTA38-G2A 380V 1000 800 1100 880 Containerised
EC GMS1020C6S Cummins KTA38-G4 380V 1159 900 1238 990 Containerised
EC GMS1100C6S Cummins KTA38-G9 380V N/A N/A 1375 1100 Containerised
EC GMS1100C6S Cummins KTA50-G3 380V 1250 1000 1375 1100 Containerised
EC GMS1375C6S Cummins KTA50-G9 380V 1563 1250 1719 1375 Containerised

Production Of Diesel Generators

PowerLink insists on R&D and innovation investment, and constantly improves product design and manufacturing level. We continuously launch high-quality products to ensure better product experience for clients.
